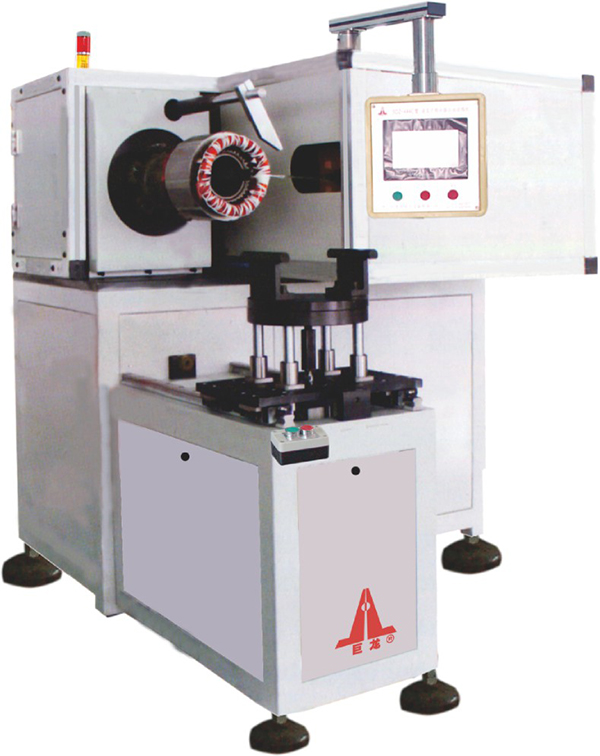

（臥式）BXJ-1W型 定子綁線機
BXJ-1W Stator Lacing Machine
本機適用于定子線圈的端部自動綁線。采用進口PLC程控，彩色觸摸屏控制，臥式結構設計，單針?biāo)欧姍C(jī)完成角度鉤線，定子上料，可移動，可升降，綁扎自動分度，可實行逐槽、隔槽、跳槽綁扎，綁扎速度快，更換模具方便。
Suitable for automatic lacing the end of the stator coil.It adopts imported PLC programmable control, color touch screen control,horizontal structure design, single-needle servo motor to complete angle hook line, stator feeding, movable, lifting and lashing,automatic slotting, slotting, slotting, hopping Fast, easy to replace the mold.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
| 總功率Total power | 3kw |
| 定子疊厚Core thickness |
100~260mm/100~320mm |
| 定子內徑Stator ID |
Φ80~180/Φ80~260mm |
| 定子外徑Stator OD |
Φ160~280/Φ160~360mm |
