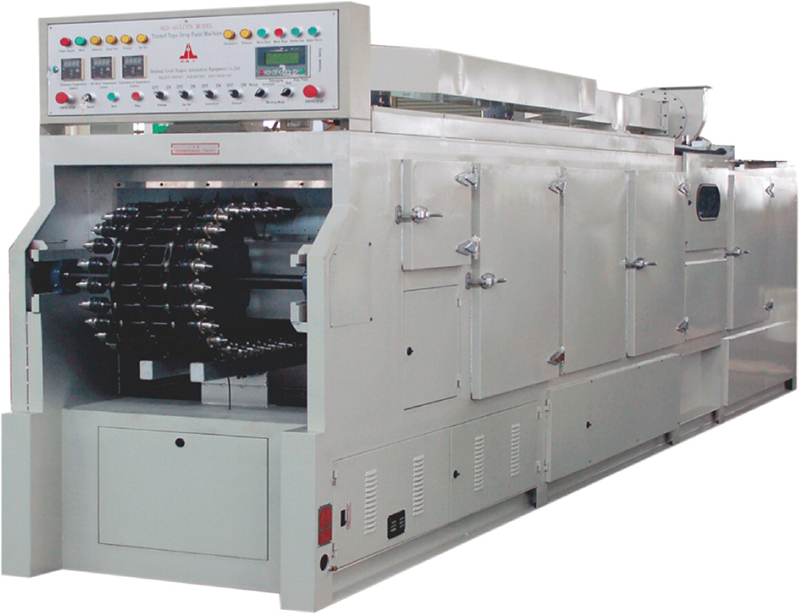

SZG系列 隧道式轉子滾漆機

SZG Tunnel Trickle style Vanishing Rotor Machine

本機廣泛應用于電動工具、摩托車起動電機、汽車電機、直流伺服電機、永磁電機、串勵電機、船用直流電機等轉子的預熱、滾漆、烘干。本機采用三菱PLC可編程控制，進口變頻器調速，氣動與機械相結合的結構，采用鏈輪旋轉運動，使鏈條產生步進運動，定位輸送，邊轉邊滾，移位準確，滾漆時間均勻，三段溫度恒溫控制，生產效率高，操作簡單方便，有外置供漆及滾漆槽水冷裝置。

This machine is widely used in preheating, varnishing and drying of rotors of such as electric tools, motorcycle starter motors, automobile motors, DC servo motors, permanent magnet motors, series-excited motors and marine DC motors. This machine adopts Mitsubishi PLC, imported frequency converter speed regulation, pneumatic and mechanical combination structure, adopts sprocket rotary motion, so that the chain produces stepping motion, positioning and conveying, rotating while?rolling, with accurate displacement, uniform?distribution of painting time. This machine has three-stage constant temperature control,  external paint supply and paint tank water cooling device,high production efficiency, simple and convenient operation.

技術參數/Technicai Parameters

電源電壓Supply voltage：AC380V±10% 50Hz

氣源壓力Air Pressure: 0.5~0.7MPa

備注：裝夾方式由用戶選定，可用鉆夾頭或夾套來固定轉子軸

Remark： Clipping measures can be chose by dients, fixing rotor axis by bore cliooer or clipping sleeve
