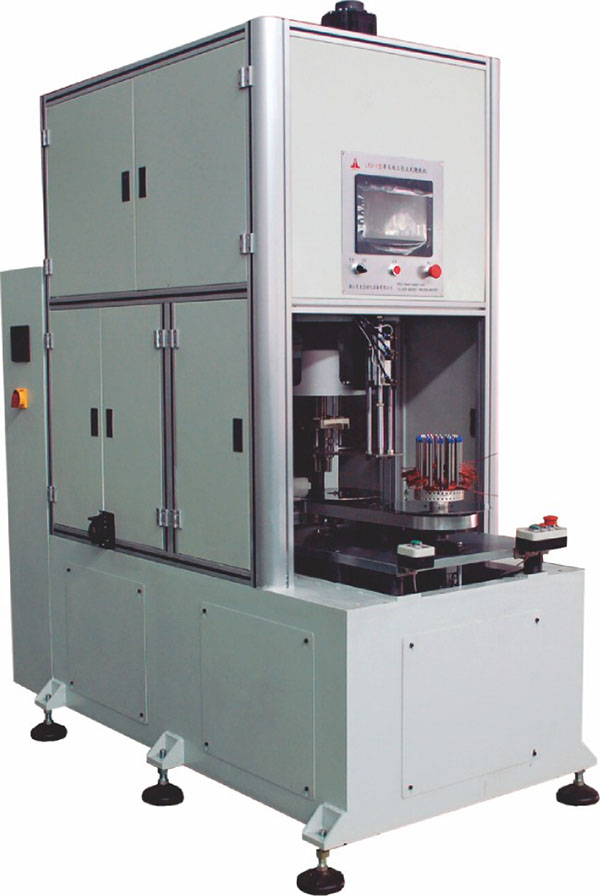

LRJ-1型單頭雙工位立式繞線機

上傳時間:2019-06-03



LRJ-1 Double Stations Vertical Automatic Winding Machine



本機適用于定子繞組線圈的立式自動繞線,并自動按嵌線要求推入線爪的專用設備,可以單層,雙層正反繞本機采用雙工位設計,一個工位繞線,一個工位裝入模具待機,繞好后180度旋轉互換工裝繼續工作,人工取下線模,PLC程控,觸摸屏控制,伺服電機繞線,定位準確,自動化程度高,操作簡單方便。



Suitable for vertical automatic winding of stator coils and automatic pushing wire to claw according to embedding settings. This machine can realize single layer winding and double layer reversible winding. It has two stations, one station for winding, another another station for loading and  standby. After the winding, stations turn 180-degrees to interchange tooling to continue to work, manually removing the wire mold. This machine uses PLC, touch screen control, servo motor to wind, accurate positioning, high degree of automation, and simple and convenient operation.


技術參數/Technicai Parameters


電源電壓Supply voltage AC380V±10%
氣源壓力 Air pressure 0.5~0.7MPa
整機功率Total power 3KW

可繞線徑Suitable wire OD

Φ0.8-Φ1.5mm
工位數 Workstations

2
