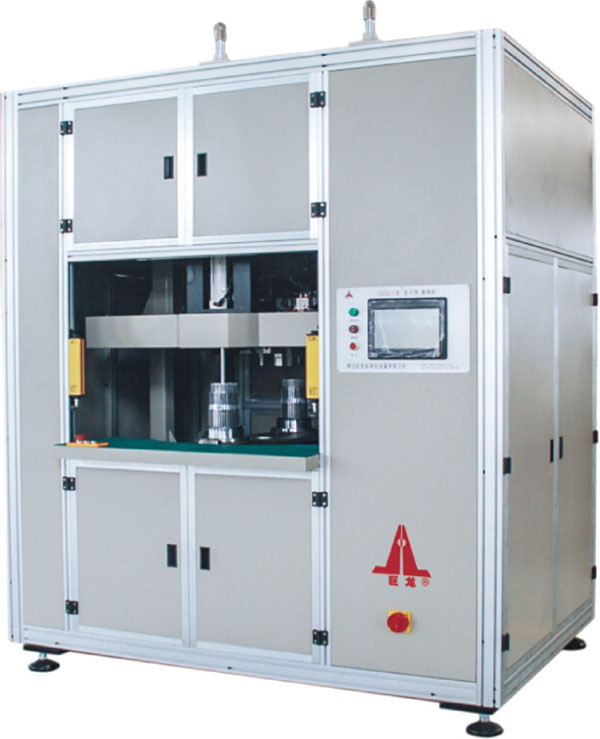

(波形繞組繞嵌一體機)SDQ-1型 雙工位波形繞嵌機
SDQ-1 Double Workstation Stator Wave Coil Winding and Inserting Machine
本機適用汽車發電機定子波形繞組的自動繞線、自動嵌線、自動打入槽蓋的一種專用設備。本機為伺服電機繞排線、氣動成形梅花狀,雙工位自動變位,伺服自動嵌線,自動打入槽蓋,一個工位在波繞推入嵌線模,另一個工位在嵌線并打入槽蓋,人工放人插好紙的定子,重復工作,PLC程控,彩色觸摸屏中文菜單設定及顯示,有點動單步/自動設定,自動化程度高,生產效率高。
Suitable for automatic winding of the stator winding of the generator of the automobile, automatic thread embedding, and a special device for automatically entering the slot cover.This machine is servo motor around the cable, pneumatic forming plum-like, automatic double-bit position, the servo automatically embedded line, automatically into the slot cover, a station in the wave-push into the embedded mode, another station PLC, color touch screen display, inching single step / automatic setting, high degree of automation, high production efficiency.
技術參數/Technicai Parameters
電源電壓Supply voltage | AC380V±10% 50Hz |
氣源壓力Air pressure |
0.5~0.7 MPa |
總功率Total power |
8kw |
繞線速度Winding speed | 10~120r/min |
定子槽數Slots |
36/48 |
線徑范圍Wire Range |
Φ0.15~Φ1.6mm |
鐵芯厚度Core thickness |
20~130mm |
