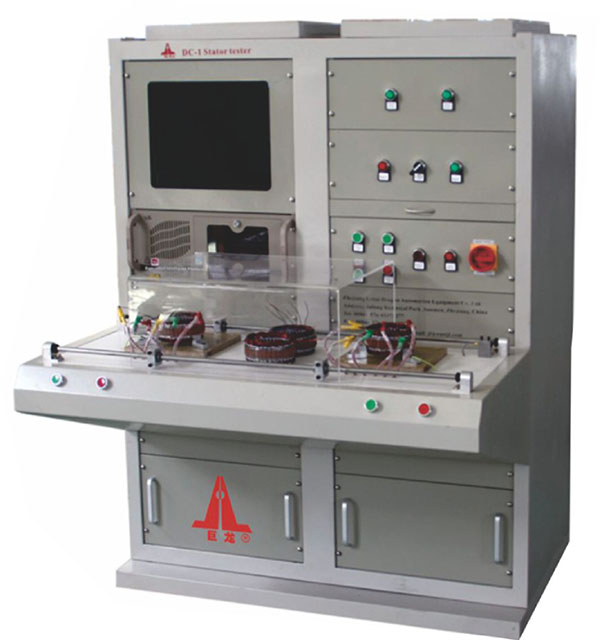

DC--1定子線圈測試臺
DC-1Model Stator Coil Testing Platfrom
本機適用于汽車發電機定子線圈電氣性能絕緣電阻及匝間耐壓的專業測試。采用工業控制器控制,大屏幕液晶顯示器顯示及修改參數,有兩個測試工位互相交替工作,可進行直流電阻、絕緣電阻、沖擊匝間、工頻耐壓、三相電流平衡的試驗,根本參數自動判斷是否合格,并打印報表參數,測試精度高,速度快,生產效率高。
Suitable for automobile generator stator coil electrical properties of insulation resistance and turn to turn the professional test pressure.Industrial controller, large-screen LCD display and modify the parameters, there are two test stations work alternately with each other, can be DC resistance, insulation resistance, the impact of turn, frequency withstand voltage, three-phase current balance test , According to the parameters automatically determine whether qualified, and print report parameters, test high precision, high speed, high production efficiency.
技術參數/Technicai Parameters
電源電壓Supply voltage | AC220V±10% 50Hz |
氣源壓力Air pressure |
0.5~0.7MPa |
直流電阻量程DC Resistance Range |
0~2000Ω |
絕緣電阻Insulation resistance | 500MΩ |
脈沖電壓Pulse voltage |
0~3000V |
工位數Workstations |
2 |
