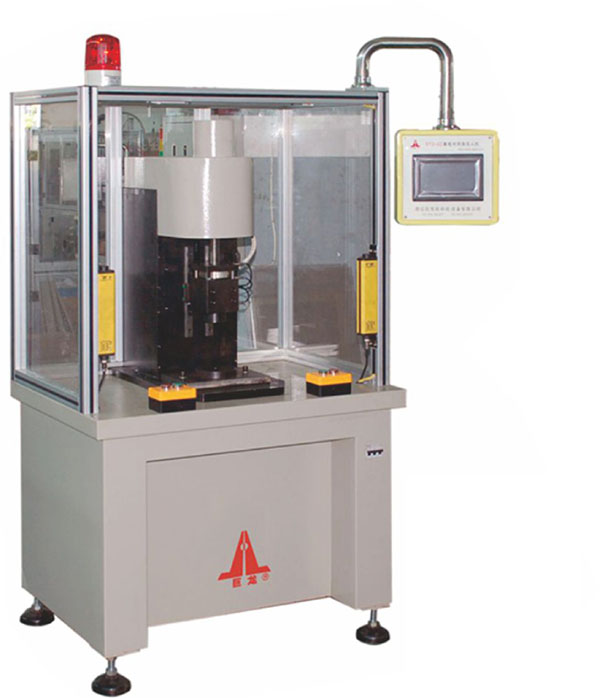

SY2-50型 集電環伺服壓入機
上傳時間：2019-06-03
SY2-50 Model Collecting Ring Servo Pressing Machine
本機適用于汽車發電機轉子集電環的自動壓入。采用三菱PLC程控，觸摸屏控制。伺服電機旋轉帶動絲桿垂直壓入，下壓速度均勻，定位準確，壓力可設定，操作簡單，使用方便。
Suitable for auto-pressing collecting ring
into automotive alternator.Mitsubishi PLC program-controlled, touch screen
control. Servo motor rotation driven screw vertical pressure, pressure uniform
speed, positioning accuracy, pressure can be set, simple operation, easy to
use.
技術參數/Technicai Parameters
|
電源電壓Supply voltage
|
AC380V±10%50Hz
|
|
總功率Total
power
|
3kw
|
|
最大壓力Max.pressure
|
20KN
|
|
主軸速度Spindle speed
|
≤30mm/S
|
|
工作行程Working stroke
|
≤250mm
|
