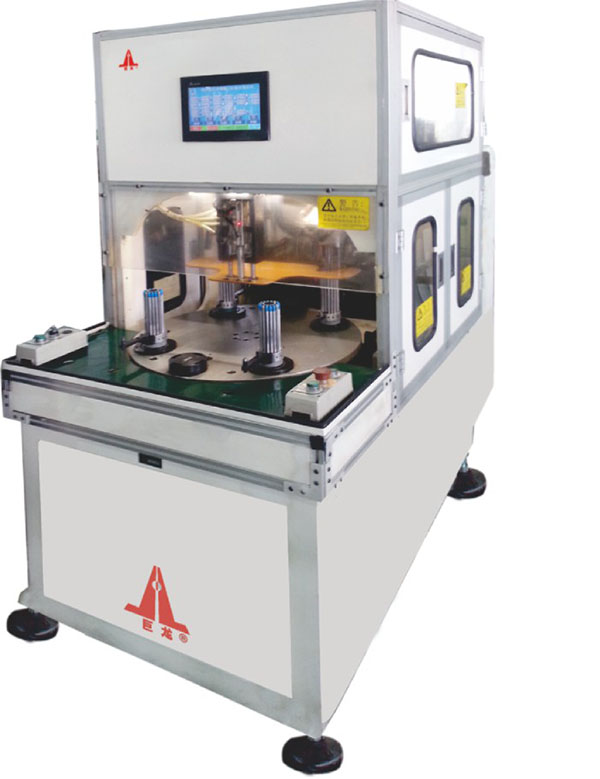

（雙頭4工位）LRJ-4型 定子線圈自動繞線機

RX-4 Automatic Stator coil Winding Machine

本機適用定子繞組線圈的立式自動繞線，并自動按嵌線要求推入線爪的一種專用設備。采用三菱PLC程控，彩色觸摸屏修改參數，伺服電機繞線，四工位設計，其中二個工位同時繞線，繞線后同時轉出，繼續繞其中二個線模，人工取出后可轉移到嵌線機上嵌線，操作簡單，生產效率高。

This machine is suitable for vertical winding of the stator windings automatically, and automatically press the embedded wire into the claw of a special equipment.Mitsubishi PLC program control, color touch screen to modify the parameters, servo motor winding, four-position design, which two work at the same time winding, winding out at the same time, to continue around the two line mode, manually removed Transfer to the embedding machine embedded line, simple operation, high production efficiency.

技術參數/Technicai Parameters
