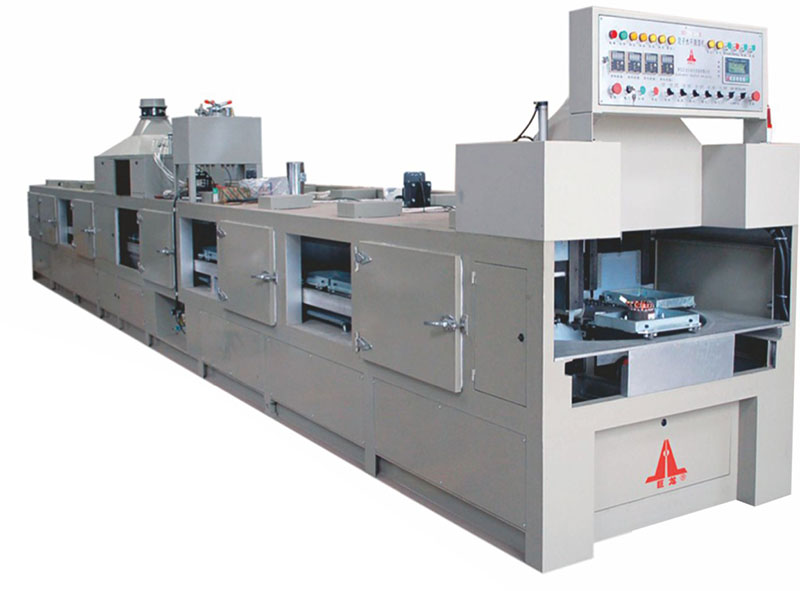

SBD系列 水平滴漆機
SBD Stator Horizontal Varnish Trickling Machine
本機廣泛應用于各種感應電機、家用發電機定子或轉子的滴漆烘干處理。采用三菱PLC程控,中文液晶顯示,用蠕動泵壓縮供漆管的方法來啟停滴漆,滴漆流量穩定可控,采用鏈輪旋轉運動,使鏈條拖動裝有定子安裝工裝的若干個小車產生水平步進移動,定位輸送,移位準確,定子不轉,滴漆頭往復旋轉,裝夾上下工件極為方便,有效保護鐵芯和引線不沾漆。有預烘、凝膠、固化烘道組成,滴漆時間和烘干時間可調,操作簡單方便。
This machine is widely used in a variety of induction motors, home generator stator or rotor drip paint drying. Mitsubishi PLC, LED display, peristaltic pump compression method for trickling control, stable volume, accurate shift, easy to load and unloading. There are pre-drying, gel, curing bake composition, drip time and drying time adjustable, easy to operate.
技術參數/Technicai Parameters
電源電壓Supply voltage |
AC380V±10% 50Hz |
總功率Total power |
70kw |
工位數Workstations |
150(3只×50車) |
定子直徑Stator diameter |
≤Φ200mm |
溫度范圍Temperature range |
0~200℃ |
特殊規格可定制Special specifications can be customized |
