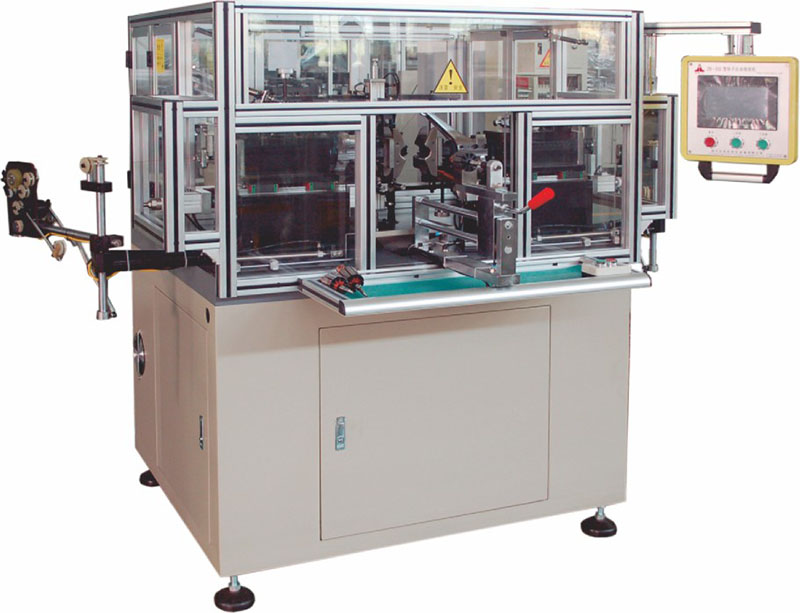

（帶剪刀）ZB-302型轉子自動繞線機

ZB-302  Automatic Rotor Wire Winding Machine

適用于偶數槽電機帶鉤換向器轉子的自動繞線。采用三菱三伺服系統，PLC程控，彩色觸摸屏顯示，工件推入夾頭夾緊、自動定位、分度、繞線、掛鉤、自動拉斷，并配有剪刀自動剪線，所有流程連續工作，采用脫卸式更換工裝，漲力松緊可調，繞線均勻，人工上下料，生產效率高。

It is suitable for automatic winding of the rotor of a commutator with slotted motor.Automatic alignment, indexing, winding, hooking, automatic pull off, and with a scissors automatically cut line, all the processes of continuous work, the use of the three-servo system, PLC program-controlled, color touch screen display, the workpiece into the chuck clamping, Detachable replacement tooling, tension adjustable tension, winding evenly, manual loading and unloading, high production efficiency.

技術參數/Technicai Parameters
