（換向器無鉤嵌槽式）ZB-303型 轉子自動繞線機

ZB-303 Automatic Rotor Wire Winding Machine (commutator slot and fuse location)

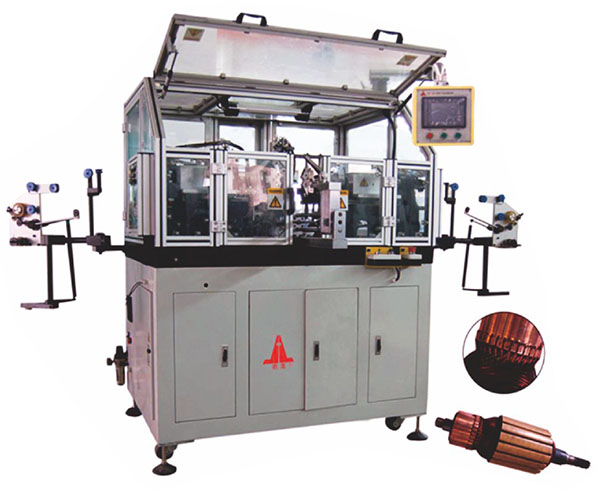

適用于電動工具、串勵電機、無鉤槽形換向器的自動繞線。采用三菱三伺服系統，PLC程控，彩色觸摸屏控制，有單步、連續工作方式可選，繞線線頭自動嵌入換向器槽，自動夾緊、自動定位、分度、繞線、掛鉤、自動拉斷，并配有剪刀自動剪線，所有流程連續工作，采用脫卸式更換工裝，漲力松緊可調，繞線均勻，人工上下料，生產效率高，本機有故障自診斷功能。

Applicable to electric tools, series motor, no hook groove commutator automatic winding. It adopts Mitsubishi three servo system, PLC program control, color touch screen control, single step, continuous working mode optional. Winding thread is automatically embedded in commutator slot, automatic clamping, automatic positioning, indexing, winding, hooking, automatic pulling The machine is equipped with scissors to cut the thread automatically. All the processes work continuously. It adopts detachable change tooling, adjustable tension force, uniform winding, manual loading and unloading, high production efficiency, and the machine has fault self-diagnosis function.

技術參數/Technicai Parameters
