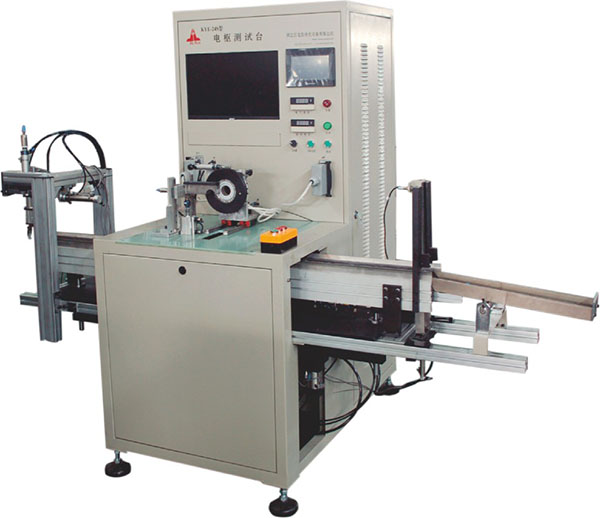

KYE-24S型 電樞測試臺

KYE-24S Armature Testing Machine

本機是焊接后檢測電樞的電氣強度、絕緣電阻、片間電阻、焊接電阻以及匝間絕緣的綜合測試系統。本系統采用PⅣ雙核工業微機作為主機，Windows多線程工控軟件，速度極快。采用32位同步采集，數字運放和單元隔離技術，精度高，穩定性好。專業的測試夾具，使測試具有極高的兼容性和互換性。系統還具有多用戶安全管理，機型配置，資料保存,數據分析，報表及打印等功能，本機配置機械手自動上下料，步進式工件移位，有測試合格或不合格產品分流通道，有滿料光電感應停止功能，自動程度高。

This machine is a comprehensive test system for the electrical strength, insulation resistance, chip resistance, welding resistance and turn-to-turn insulation of the armature after welding.The system uses P Ⅳ dual-core industrial computer as a host, Windows multi-threaded industrial control software, fast. Using 32-bit synchronous acquisition, digital operational amplifier and cell isolation technology, high precision, good stability. Professional test fixture, so that the test has a very high compatibility and interchangeability. The system also has functions such as multi-user security management, model configuration, data preservation, data analysis, report and printing, etc. The machine is equipped with automatic loading and unloading, step-by-step workpiece shifting, qualified or unqualified product shunt channel. Full photoelectric sensor stop function, a high degree of automation.

技術參數/Technicai Parameters
