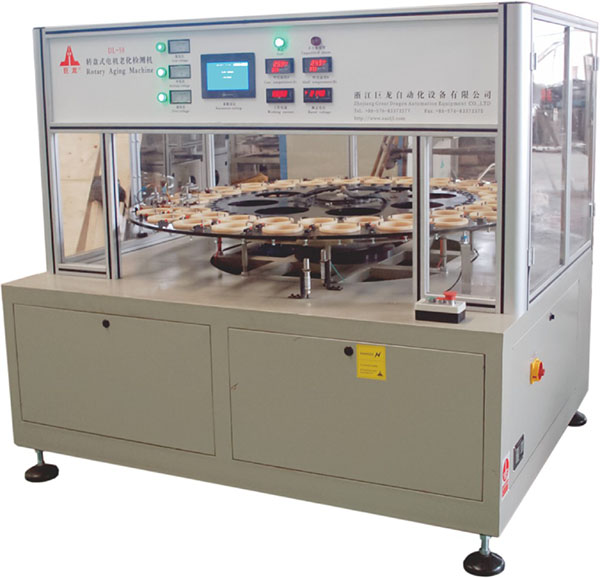

(交流/直流電機)DL-50型 轉盤式老化檢測機

上傳時間:2019-06-04



DL-50 Turntable Motor Aging Running-in Machine



本機用于各類電機的各項性能檢測前,龍其是串激電機、直流電機,采用不同直流電壓進行一定時間的碳刷磨合老化的專用設備。采用圓形水平旋轉工作臺,減速機,活動導電系統,老化工裝板,直流開關穩壓電源,變頻器,PLC控制器,觸摸顯示器等裝置組成。分低壓中壓和高壓三段電壓老化,最后一工位有電流和溫度測試功能,變頻器控制旋轉合轉速,分連續轉位或單步轉位,操作方便。



This machine is used for all kinds of motor performance testing before the dragon is the series motor, DC motor, using different DC voltage for a certain period of time the carbon brush wear aging of the special equipment.The use of circular horizontal rotary table, reducer, active conductive system, the aging tooling board, DC switching power supply, inverter, PLC controller, touch display and other devices. Voltage and high voltage three sections of aging, the last station has a current and temperature test function, the inverter control of rotating speed, sub-continuous or single-step indexing translocation, easy to operate.





技術參數/Technicai Parameters


電源電壓Supply voltage

AC220±10% 50Hz

總功率Total power

9~18kw

低壓電源Low voltage power supply

0~30V/30A

0~220V/20A
中壓電源Medium Voltage Power

0~30V/30A

0~220V/20A

高壓電源High Voltage Power Supply

0~30V/30A

0~220V/20A

檢測電源Detect power

0~30V/30A

0~220V/20A

溫度測量Temperature Measurement

0~100℃

工位數Workstations

50

   電源根據用戶雙方協定選擇Special specifications can be customized
