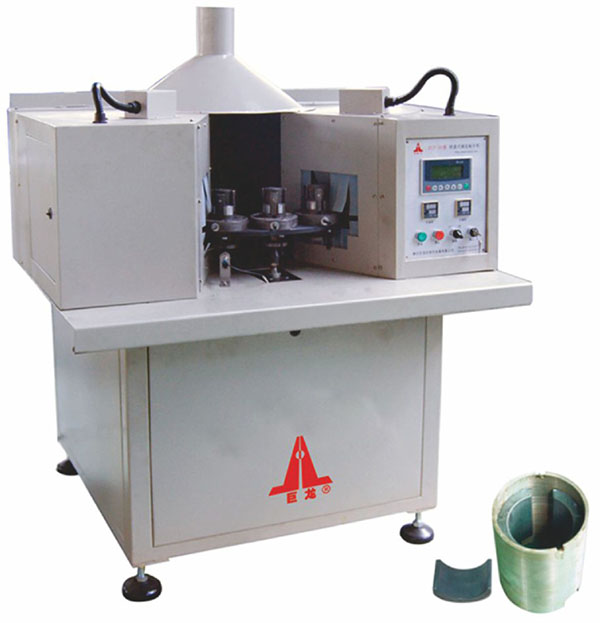

ZCT-20型轉盤式磁瓦貼片烘干機

ZCT-20 Turntable Magnetic Pasting Machine

將永磁電機未充磁磁瓦裝入電機外殼中，并對磁瓦貼裝后利用自身張緊夾具對磁瓦定位、烘干、固化的專用設備。采用三菱PLC程控，中文文本顯示器修改參數，轉盤式結構，步進旋轉，人工套入定子步入烘道后，模具自動漲緊，步進轉出，氣缸自動松開，人工取出工件，保證了定子磁瓦的同心度和垂直度。本機為預烘干，需用戶自備烘箱作固化處理。

The permanent magnet motor unmagnetized magnetic tile is installed in the motor casing, and the machine is for positioning, drying and solidifying the magnetic tile by using the self-tensioning clamp after the magnetic tile is mounted. Using Mitsubishi PLC program control, text display to modify parameters, rotary structure, step rotation, manual put the stator into the drying tunnel, the mold automatically tightens, stepping out, the cylinder is automatically released, manually remove the workpiece, to ensure the concentricity and verticality of the stator magnet. This machine provides pre-heating function and users need a heating oven for solidifying the workpiece.

技術參數/Technicai Parameters
