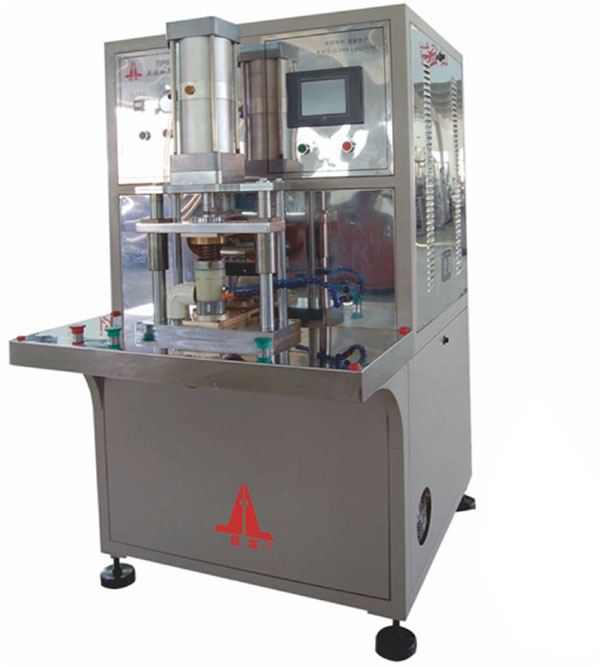

(真空封焊)DRF-6000D型 數控儲能脈沖封焊機
DRF-6000D CNC Energy Storing Pulse Seal Welding Machine
適用要求較高的微波器件,傳感器,濾波器及航天上應用的元件氣密性抽真空、充氮?dú)獾拿芊夥夂。采用三?span>PLC程控,觸摸屏控制,高壓脈沖儲能電容放電,在同一工作型腔內先抽真空后充保護氣體,再封焊一步完成,有欠壓充電不足和充電過壓保護。
Applicable to higher requirements of microwave devices, sensors, filters and aerospace components on the application of airtight vacuum, nitrogen sealed sealing welding.Using Mitsubishi PLC program-controlled, touch-screen control, high-voltage pulse energy storage capacitor discharge in the same working cavity after the first vacuum filling protection gas, then seal welding step to complete, under-voltage charge and over-voltage protection.
技術參數/Technicai Parameters
電源電壓Supply voltage |
AC220V±10% 50Hz |
氣源壓力Air pressure |
0.5~0.7MPa |
充電電壓Charging voltage |
0~1000V DC |
儲能能量Energy storage | 6000J |
電容容量Capacitance |
12000uF |
輸入電流Input Current |
20A |
