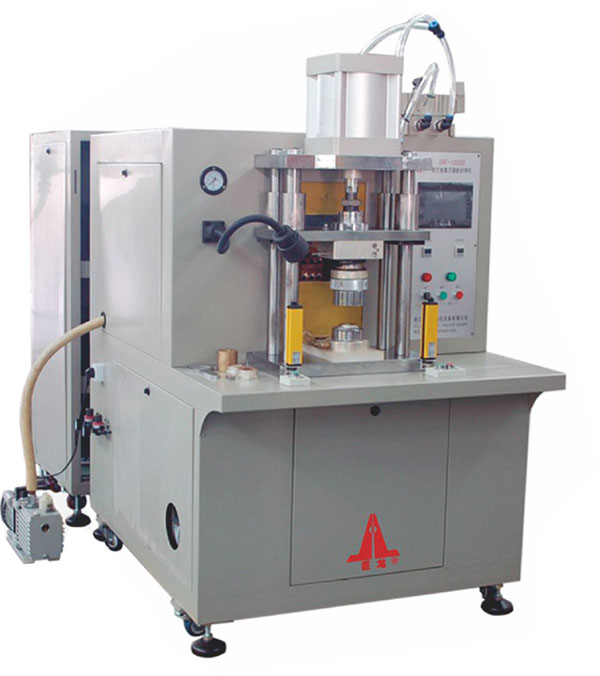

DRF-15000S型 抽真空脈沖封焊機

DRF-15000S Vacuum Impulse Seal Welding Machine

適用要求較高的微波器件，傳感器，濾波器及航天上應用的元件氣密性抽真空、充氮氣的密封封焊。采用三菱PLC程控，觸摸屏控制，高壓脈沖儲能電容放電，在同一工作型腔內先抽真空后充保護氣體，再封焊一步完成，有欠壓充電不足和充電過壓保護。

Applicable to higher requirements of microwave devices, sensors, filters and aerospace components on the application of airtight vacuum, nitrogen sealed sealing welding.Using Mitsubishi PLC program-controlled, touch-screen control, high-voltage pulse energy storage capacitor discharge in the same working cavity after the first vacuum filling protection gas, then seal welding step to complete, under-voltage charge and over-voltage protection.

技術參數/Technicai Parameters




電源電壓Supply voltage	AC220V±10% 50Hz
氣源壓力Air pressure	0.5~0.7MPa
充電電壓Charging voltage	0~1000V DC
儲能能量Energy storage	12000J
電容容量Capacitance	24000uF
輸入電流Input Current	20A
